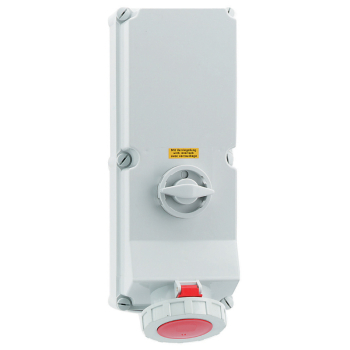

Switched Interlocked Socket 125A 400V 5P IP67
Stock Code: 169
EAN: 4024941001694
EAN: 4024941001694
| Amp Current | 125A |
|---|---|
| Voltage | 400V |
| Pins | 3P+N+E |
| IP Rating | IP67 |
| Connection Technology | Screw Terminal |
| H Position | 6H |
| Overall Dimensions | 460x180mm |
Switched Interlocked Socket
125A, 400V, 5P, IP67, 6H with screw terminals
M40 Top Entry and M50/M40 Bottom Entry
Enclosure made of Polycarbonate
The contact carrier is made of high temperature resistant material, the contacts are brass nickel plated
With a maximum conductor size of 70,0 mm²
The cable entry is one at the top open and two at the bottom closed
In 0-position lockable for 4 padlocks with a bow diameter up to 7 mm
Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem
