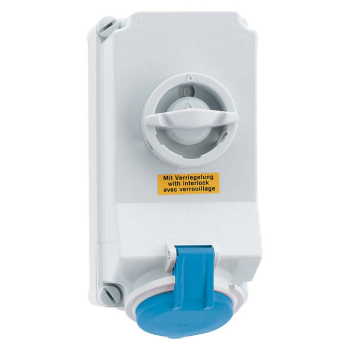

Switched Interlocked Socket 32A 230V 3P IP44
EAN: 4024941161930
| Amp Current | 32A |
|---|---|
| Voltage | 230V |
| Pins | 2P+E |
| IP Rating | IP44 |
| Connection Technology | Quick Connect / Screwless Terminal |
| H Position | 6H |
| Overall Dimensions | 225x118mm |
Switched Interlocked Socket
32A, 230V, 3P, IP44, 6H with "Quick Connect" screwless terminals
M25 Top Entry and 2 x M25 Bottom Entry
Enclosure made of Polycarbonate
The contact carrier is made of high temperature resistant material, the contacts are brass nickel plated
With a maximum conductor size of 10,0 mm²
The cable entry is one at the top open and two at the bottom closed
Connection Technology: Quick-Connect Screwless
- All QUICK-CONNECT sockets are touch-safe
- Pressing the contact slide with your finger closes the terminal
- Reliable and permanent connection by means of spring-clamp technology
- The damage-free conductor clamping guarantees an optimum connection over the entire service life
- Rewiring without additional handling of the conductor
4024941161930
