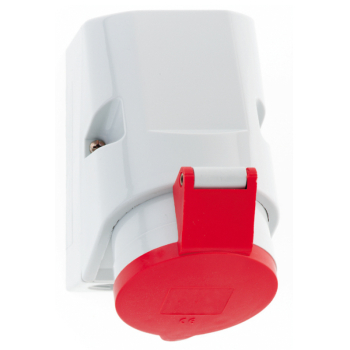

Surface Mounting Socket 32A 400V 5P IP44
Stock Code: 11962
EAN: 4024941119627
EAN: 4024941119627
| Amp Current | 32A |
|---|---|
| Voltage | 400V |
| Pins | 3P+N+E |
| IP Rating | IP44 |
| Connection Technology | Quick Connect / Screwless Terminal |
| H Position | 6H |
| Overall Dimensions | 157x83mm |
Surface Mounting Socket
32A, 400V, 5P, IP44, 6H with "Quick Connect" screwless terminals
M25 Top Entry, 2 x M25 Bottom Entry
Enclosure made of Polyamide
The contact carrier is made of polyamide, The contacts are brass
With a maximum conductor size of 10,0 mm²
The cable entry is one at top open and two at bottom closed
Lower part of housing rotatable by 180°
mm²
Connection Technology: Quick-Connect Screwless
- All QUICK-CONNECT sockets are touch-safe
- Pressing the contact slide with your finger closes the terminal
- Reliable and permanent connection by means of spring-clamp technology
- The damage-free conductor clamping guarantees an optimum connection over the entire service life
- Rewiring without additional handling of the conductor
EAN: 4024941119627
