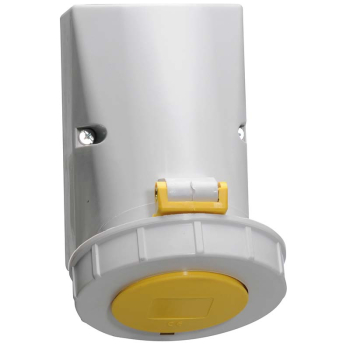

Surface Mounting Socket 32A 110V 5P IP67
Stock Code: 1153
EAN: 4024941011532
EAN: 4024941011532
| Amp Current | 32A |
|---|---|
| Voltage | 110V |
| Pins | 3P+N+E |
| IP Rating | IP67 |
| Connection Technology | Screw Terminal |
| H Position | 4H |
| Overall Dimensions | 126x83mm |
Surface Mounting Socket
32A, 110V, 5P, IP67, 4H with screw terminals
M25 Top Entry and 2 x M25 Bottom Entry
Enclosure made of Polyamide
The contact carrier is made of polyamide, the contacts are brass
With a maximum conductor size of 10,0 mm²
The cable entry is one at top open and two at bottom closed
Lower part of housing rotatable by 180°
Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem
EAN: 4024941011532
