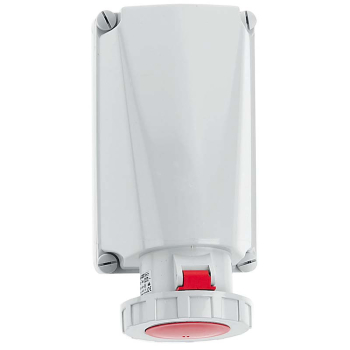

Surface Mounting Socket 125A 400V 4P IP67
Surface Mounting Socket 125A 400V 4P IP67

Surface Mounting Socket 125A 400V 4P IP67

Stock Code: 11441
EAN: 4024941114417

Amp Current125A
Voltage400V
Pins3P+E
IP RatingIP67
Connection TechnologyScrew Terminal
H Position6H
Overall Dimensions260x160mm

Descriptions

Surface Mounting Socket

125A, 400V, 4P, IP67, 6H with screw terminals

M50 Top Entry

Enclosure made of Polycarbonate

The contact carrier is made of high temperature resistant material, the contacts are brass nickel plated

With a maximum conductor size of 70,0 mm²

The cable entry is one at top open

Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem

EAN: 4024941114417
