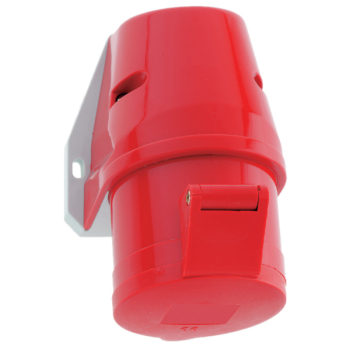

Surface Mounting Socket 16A 400V 5P IP44
Stock Code: 112001
EAN: 4024941014625
EAN: 4024941014625
| Amp Current | 16A |
|---|---|
| Voltage | 400V |
| Pins | 3P+N+E |
| IP Rating | IP44 |
| Connection Technology | Quick Connect / Screwless Terminal |
| H Position | 6H |
| Overall Dimensions | 131x87mm |
Surface Mounting Socket
16A, 400V, 5P, IP44, 6H with "Quick Connect" screwless terminals
M25 Top Entry
Enclosure made of Polyamide
The contact carrier is made of polyamide, The contacts are brass
With a maximum conductor size of 4,0 mm&sup6
The cable entry is one at top open and one at bottom closed
mm²
Connection Technology: Quick-Connect Screwless
- All QUICK-CONNECT sockets are touch-safe
- Pressing the contact slide with your finger closes the terminal
- Reliable and permanent connection by means of spring-clamp technology
- The damage-free conductor clamping guarantees an optimum connection over the entire service life
- Rewiring without additional handling of the conductor
EAN: 4024941014625
