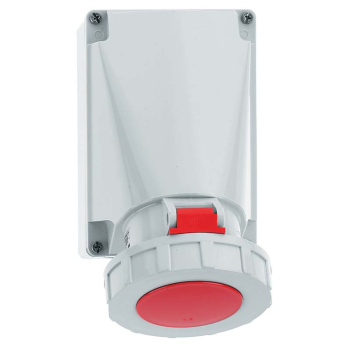

Surface Mounting Socket 63A 400V 5P IP67
Stock Code: 1112
EAN: 4024941011129
EAN: 4024941011129
| Amp Current | 63A |
|---|---|
| Voltage | 400V |
| Pins | 3P+N+E |
| IP Rating | IP67 |
| Connection Technology | Screw Terminal |
| H Position | 6H |
| Overall Dimensions | 170x118mm |
Surface Mounting Socket Outlets
63A, 400V, 5P, IP67, 6H with screw terminals
M40 Top Entry and M32 Bottom Entry
Enclosure made of Polycarbonate
The contact carrier is made of high temperature resistant material, the contacts are brass nickel plated
With a maximum conductor size of 25.0 mm²
The cable entry is one at top open and two at bottom closed
Lower part of housing is rotatable by 180°
Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem
EAN: 4024941011129
