Amp Current | 16A |
---|---|
Voltage | 230V |
Pins | 3P+N+E |
IP Rating | IP44 |
Connection Technology | Screw Terminal |
H Position | 9H |
Overall Dimensions | 100x75mm |

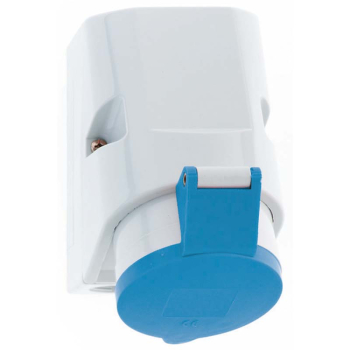

Surface Mounting Socket
16A, 230V, 5P, IP44, 9H with screw terminals
M20 Top Entry
Enclosure made of Polyamide
The contact carrier is made of polyamide, the contacts are brass
With a maximum conductor size of 4,0 mm²
The cable entry is one at top open and one at bottom and one rear side closed
Lower part of housing rotatable by 180°
Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem
EAN: 4024941011112
