Overall Dimensions | 91mm x 80mm x 62mm |
---|---|
Power Rating | 50VA |
Input | 230-240V |
Output | 24V AC |
Mount Type | Panel Mounted |

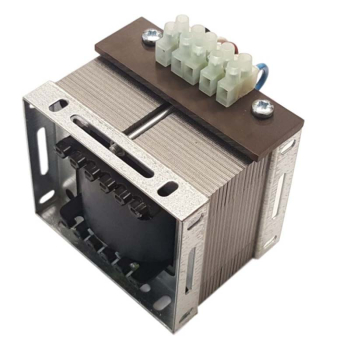

Panel Mounted Transformer
50VA isolation transformer
Input: 230-240V
Output: 24V AC
Dimensions: H91mm x W80mm x D62mm
Hardwired input/output
Continuous rated transformer
Universal fixing points for mounting long or short side.
IP2X Screw terminals
Panel Mounted
Features:
- Dual Input: 0-230-240V
- Input Amperage: 0.2A
- Output: 24V AC
- Output Amperage: 2.08A
- Copper wound transformer
- Tri-rated wiring
Available to be customized to your requirements
