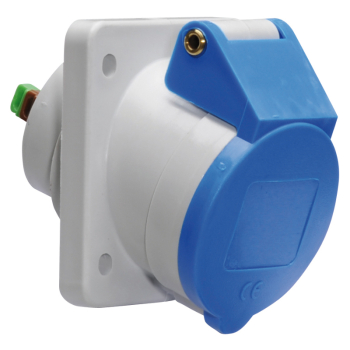

Panel Mounting Socket 16A 230V 3P IP44
EAN: 4024941127325
| Amp Current | 16A |
|---|---|
| Voltage | 230V |
| Pins | 2P+E |
| IP Rating | IP44 |
| Connection Technology | Quick Connect / Screwless Terminal |
| H Position | 6H |
| Overall Dimensions | 75x62mm |
| Flange Size/Fixing Centers | Flange 68x62/Fixing Centers 47x47 |
Panel Mounting Socket
16A, 230V, 3P, IP44, 6H with "Quick Connect" screwless terminals
Enclosure made of Polyamide
The contact carrier is made of polyamide, the contacts are made of brass
With a maximum conductor size of 4,0 mm²
Flange size of 68x62 with fixing centers of 47x47The inclination is 20°
Connection Technology: Quick-Connect Screwless
- All QUICK-CONNECT sockets are touch-safe
- Pressing the contact slide with your finger closes the terminal
- Reliable and permanent connection by means of spring-clamp technology
- The damage-free conductor clamping guarantees an optimum connection over the entire service life
- Rewiring without additional handling of the conductor
EAN: 4024941127325
