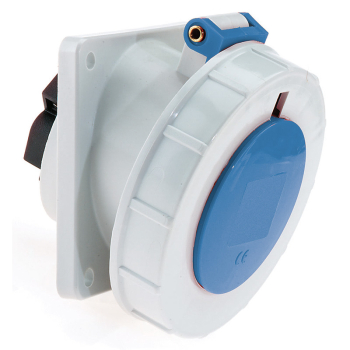

Panel Mounting Socket 16A 230V 4P IP67
Stock Code: 1269
EAN: 4024941012690
EAN: 4024941012690
| Amp Current | 16A |
|---|---|
| Voltage | 230V |
| Pins | 3P+E |
| IP Rating | IP67 |
| Connection Technology | Screw Terminal |
| H Position | 9H |
| Flange Size/Fixing Centers | Flange 100x92, Fixing Centers 85x77 |
Panel Mounting Socket Outlets Angled
16A, 230V, 4P, IP67, 9H with screw terminals
Enclosure made of Polyamide
The contact carrier is made of polyamide, The contacts are brass
With a maximum conductor size of 4,0 mm²
Flange size of 100x92 with fixing centers of 85x77
The inclination is 20°
Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem
EAN: 4024941012690
