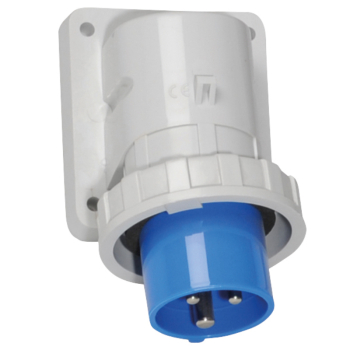

Panel Mounting Inlet 32A 230V 3P IP67
Stock Code: 2665
EAN: 4024941026659
EAN: 4024941026659
| Amp Current | 32A |
|---|---|
| Voltage | 230V |
| Pins | 2P+E |
| IP Rating | IP67 |
| Connection Technology | Screw Terminal |
| H Position | 6H |
| Overall Dimensions | 138x90mm |
| Flange Size/Fixing Centers | Flange 75x90 / Fixing Centers 45x78 |
Panel Mounting Inlet
32A, 230V, 3P, IP67, 6H with screw terminals
Enclosure made of Polyamide
The contact carrier is made of polyamide, the contacts are made of brass nickel plated
With a maximum conductor size of 6,0 mm²
Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem
EAN: 4024941026659
