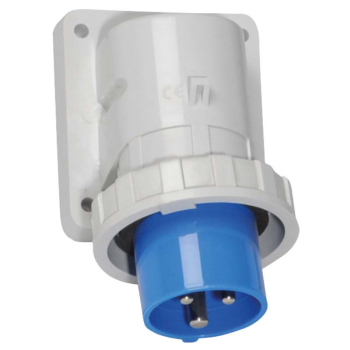

Panel Mounting Inlet 16A 230V 3P IP67
Stock Code: 2614
EAN: 4024941026147
EAN: 4024941026147
| Amp Current | 16A |
|---|---|
| Voltage | 230V |
| Pins | 2P+E |
| IP Rating | IP67 |
| Connection Technology | Screw Terminal |
| H Position | 6H |
| Overall Dimensions | 128x74mm |
| Flange Size/Fixing Centers | Flange 84x74 / Fixing Centers 64x58 |
Panel Mounting Inlet
16A, 230V, 3P, IP67, 6H with screw terminals
Enclosure made of Polyamide
The contact carrier is made of polyamide, the contacts are made of brass nickel plated
With a maximum conductor size of 2,5 mm²
Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem
EAN: 4024941026147
