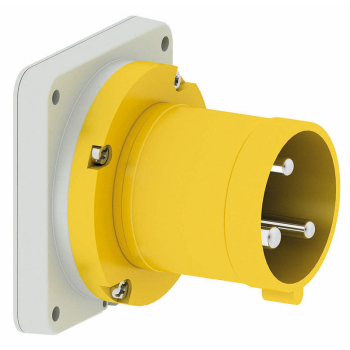

Panel Mounting Inlet 63a 110V 3P IP44
Stock Code: 2880
EAN: 4024941028806
EAN: 4024941028806
| Amp Current | 63a |
|---|---|
| Voltage | 110V |
| Pins | 2P+E |
| IP Rating | IP44 |
| Connection Technology | Screw Terminal |
| H Position | 4H |
| Overall Dimensions | 105x100x114 |
| Flange Size/Fixing Centers | Flange 110x106 / Fixing Centers 90x90 |
Panel Mounting Inlet Straight
63a, 110V, 3P, IP44, 4H with screw terminals
Enclosure made of Polyamide
The contact carrier is made of high temperature resistant material, the contacts are brass nickel plated
With a maximum conductor size of 6,0 mm²
Flange size of 110x106 with fixing centers 90x90
A retaining device to match the hinged cover of the connector must be provided to ensure the latching feature
Collar in middle of flange
Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem
EAN: 4024941028806
