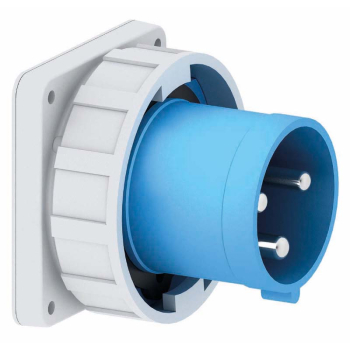

Panel Mounting Inlet 125A 230V 3P IP67
Stock Code: 2860
EAN: 4024941028608
EAN: 4024941028608
| Amp Current | 125A |
|---|---|
| Voltage | 230V |
| Pins | 2P+E |
| IP Rating | IP67 |
| Connection Technology | Screw Terminal |
| H Position | 6H |
| Overall Dimensions | 120x120mm |
| Flange Size/Fixing Centers | Flange 120x120 / fixing Centers 100x100 |
Panel Mounting Inlet Straight
125A, 230V, 3P, IP67, 6H with screw terminals
Enclosure made of Polyamide
The contact carrier is made of high temperature resistant material, the contacts are brass nickel plated
With a maximum conductor size of 50,0 mm²
Flange size of 120x120 with fixing centers 100x100
Collar is in the middle of flange
Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem
EAN: 4024941028608
