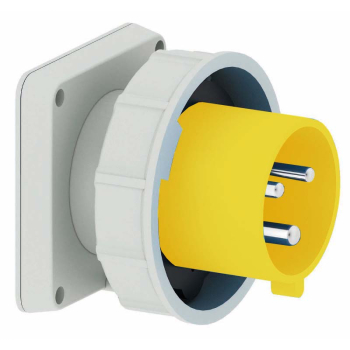

Panel Mounting Inlet 16A 110V 3P IP67
Stock Code: 28286
EAN:
EAN:
| Amp Current | 16A |
|---|---|
| Voltage | 110V |
| Pins | 2P+E |
| IP Rating | IP67 |
| Connection Technology | Screw Terminal |
| H Position | 4H |
| Overall Dimensions | 85x85mm |
| Flange Size/Fixing Centers | Flange 85x85 / Fixing Centers 70x70 |
Panel Mounting Inlet Straight
16A, 110V, 3P, IP67, 4H with screw terminals
Enclosure made of Polyamide
The contact carrier is made of high temperature resistant material, the contacts are brass nickel plated
With a maximum conductor size of 2,5 mm²
Flange size of 85x85 with fixing centers 70x70
Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem
