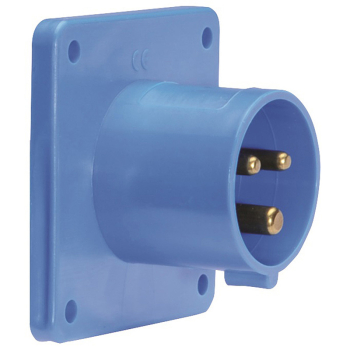

Panel Mounting Inlet 16A 230V 3P IP44
Stock Code: 2817
EAN: 4024941028172
EAN: 4024941028172
| Amp Current | 16A |
|---|---|
| Voltage | 230V |
| Pins | 2P+E |
| IP Rating | IP44 |
| Connection Technology | Screw Terminal |
| H Position | 6H |
| Overall Dimensions | 75x75mm |
| Flange Size/Fixing Centers | Flange 75x75 / Fixing Centers 60x60 |
Panel Mounting Inlet Straight
16A, 230V, 3P, IP44, 6H with screw terminals
Enclosure made of Polyamide
The contact carrier is made of high temperature resistant material, the contacts are brass nickel plated
With a maximum conductor size of 2,5 mm²
Flange size of 75x75 with fixing centers 60x60
A retaining device to match the hinged cover of the connector must be provided to ensure latching
Collar is in the middle of flange
Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem
EAN: 4024941028172
