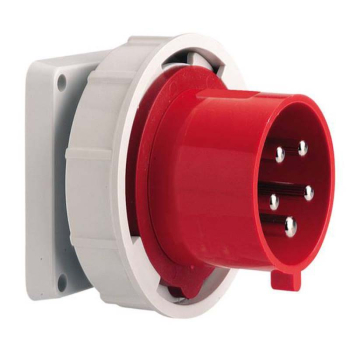

Panel Mounting Inlet 32A 400V 5P IP67
Stock Code: 28109
EAN: 4024941281096
EAN: 4024941281096
| Amp Current | 32A |
|---|---|
| Voltage | 400V |
| Pins | 3P+N+E |
| IP Rating | IP67 |
| Connection Technology | Screw Terminal |
| H Position | 6H |
| Overall Dimensions | 85x85mm |
| Flange Size/Fixing Centers | Flange 85x85 / Fixing Centers 70x70 |
Panel Mounting Inlet Straight
32A, 400V, 5P, IP67, 6H with screw terminals
Enclosure made of Polyamide
The contact carrier is made of high temperature resistant material, the contacts are brass nickel plated
With a maximum conductor size of 6,0 mm²
Flange size of 85x85 with fixing centers 70x70
A retaining device to match the hinged cover of the connector must be provided to ensure latching
Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem
EAN: 4024941281096
