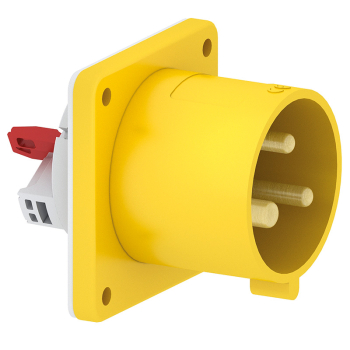

Panel Mounting Inlet 32A 110V 3P IP44
EAN: 4024941280099
| Amp Current | 32A |
|---|---|
| Voltage | 110V |
| Pins | 2P+E |
| IP Rating | IP44 |
| Connection Technology | Quick Connect / Screwless Terminal |
| H Position | 4H |
| Overall Dimensions | 75x75mm |
| Flange Size/Fixing Centers | Flange Size 75x75 / Fixing Centers 60x60 |
Panel Mounting Inlet Straight
32A, 110V, 3P, IP44, 4H with "Quick Connect" screwless terminals
Enclosure made of Polyamide
The contact carrier is made of polyamide, the contacts are brass
With a maximum conductor size of 6,0 mm²
Flange size of 75x75 with fixing centers 60x60
A retaining device to match the hinged cover of the connector must be provided to ensure the latching feature
Collar is brought out of center of the flange by 2 mm
Connection Technology: Quick-Connect Screwless
- All QUICK-CONNECT sockets are touch-safe
- Pressing the contact slide with your finger closes the terminal
- Reliable and permanent connection by means of spring-clamp technology
- The damage-free conductor clamping guarantees an optimum connection over the entire service life
- Rewiring without additional handling of the conductor
EAN: 4024941280099
