Socket on Backbox 3 Gang 16A 400V 5P IP44
Stock Code: 653371
EAN: 5060943540204
EAN: 5060943540204
| Amp Current | 16A |
|---|---|
| Voltage | 400V |
| Pins | 3P+N+E |
| IP Rating | IP44 |
| Connection Technology | Pre-Wired |
| H Position | 6H |
| Overall Dimensions | 245x335mm |
| Gang | 3 Gang |

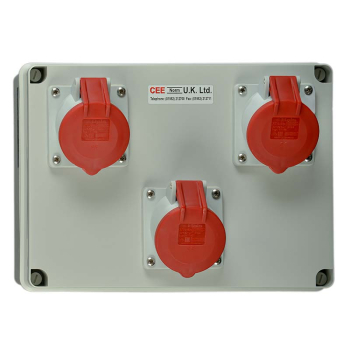

Socket on Backbox 3 Gang
16A, 400V, 5P, IP44, 6H comes pre-wired to Terminal Block
With a maximum conductor size of 16,0 mm²
Height x Width: 245x335mm
EAN: 5060943540204
Manufactured by CEENORM using BALS panel sockets
All back boxes are supplied undrilled for cable entry unless otherwise requested
Angled sockets fitted as standard
Straight sockets can be fitted on special request
CEENORM reserve the right to change the enclosure size
