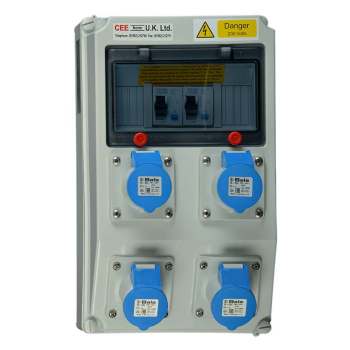

Surface Mounting RCD Protected Multi-Socket Outlet 32A 230V 3P IP44 A Type
Stock Code: 884336-A
EAN: 5060943542772
EAN: 5060943542772
| Amp Current | 32A |
|---|---|
| Voltage | 230V |
| Pins | 2P+E |
| IP Rating | IP44 |
| Connection Technology | Pre-Wired |
| H Position | 6H |
| Overall Dimensions | 370x222mm |
| Protective Devices | 2 x 63A 30MA DP RCD Type A |
| Gang | 4 Gang |
Surface Mounting Multi Socket Outlets Protected
32A, 230V, 3P, IP44, 6H pre-wired to RCD
Sockets protected by 2 x 63A 30MA DP RCD Type A
With a maximum conductor size of 25,0 mm² to RCD, 10 mm² to Earth
Height x Width: 370x222mm
EAN: 5060943541102
Manufactured by CEENORM using BALS panel sockets
All back boxes are supplied undrilled for cable entry unless otherwise requested
Straight sockets fitted as standard
Angled sockets can be fitted on special request
Other circuit protection available on request
CEENORM reserve the right to change the enclosure size
