Distribution Transformer Continuous Rated 10kVA 240-110V
Distribution Transformer Continuous Rated 10kVA 240-110V

Distribution Transformer Continuous Rated 10kVA 240-110V

Stock Code: TRA10KVAE 240/110/6C16
EAN: 5060943541423

IP RatingIP23
Overall Dimensions454mm x 384mm x 305mm
Power Rating10kVA
Input240V
Output110V
Mount TypeWall / Floor Mounted

Descriptions

Continuous Rated Distribution Transformer

10kVA isolation transformer

Input: 240V

Output: 110V CTE (55-E-55)

Dimensions: 454mm x 384mm x 305mm

Hardwired input

110V CTE output continuous rated transformer

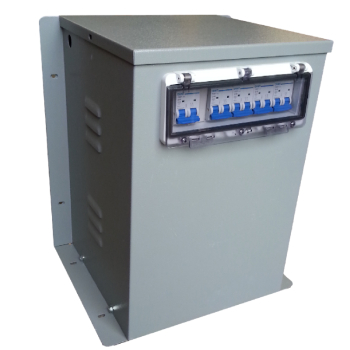

Steel vented enclosure which has fixing flanges for both wall or surface mounting. 6x110V outgoing circuits protected by 6xC16A DPMCB's housed in a hinged window.

Internal terminal connection

Wall/Floor Mounted

Features:

        • Mild Steel enclosure
        • Powder coat paint finish
        • RAL 7037 Hammer Grey
        • Copper wound transformer
        • Tri-rated wiring

We can custom-build distribution transformers to your exact requirements, with options including step-down transformers and step-up transformers. To inquire about a custom-build, get in touch.
