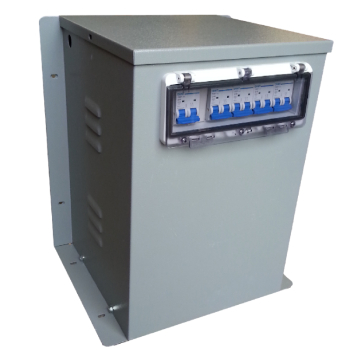

Distribution Transformer Continuous Rated 7.5kVA 240-110V
Stock Code: TRA7.5KVAE 240/110/4C16
EAN: 5060943541508
EAN: 5060943541508
| IP Rating | IP23 |
|---|---|
| Overall Dimensions | 454mm x 384mm x 305mm |
| Power Rating | 7.5kVA |
| Input | 240V |
| Output | 110V |
| Mount Type | Wall / Floor Mounted |
Continuous Rated Distribution Transformer
75kVA isolation transformer
Input: 240V
Output: 110V CTE (55-E-55)
Dimensions: 454mm x 384mm x 305mm
Hardwired input
110V CTE output continuous rated transformer
Steel vented enclosure which has fixing flanges for both wall or surface mounting. 4x110V outgoing circuits protected by 4xC16A DPMCB's housed in a hinged window.
Internal terminal connection
Wall/Floor Mounted
Features:
- Mild Steel enclosure
- Powder coat paint finish
- RAL 7037 Hammer Grey
- Copper wound transformer
- Tri-rated wiring
Available to be customized to your requirements
