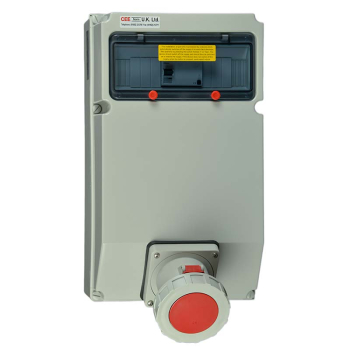

Surface Mounting Socket Outlet RCD Protected 125A 400V 4P IP67 A Type
Stock Code: 880638-A
EAN:
EAN:
| Amp Current | 125A |
|---|---|
| Voltage | 400V |
| Pins | 3P+E |
| IP Rating | IP67 |
| Connection Technology | Pre-Wired |
| H Position | 6H |
| Overall Dimensions | 504x297mm |
| Protective Devices | 125A 30MA 4P RCD Type A |
Surface Mounting Socket Outlet Protected
125A, 400V, 4P, IP67, 6H pre-wired to RCD
Socket protected by 125A 30MA 4P RCD Type A
With a maximum conductor size of 25,0 mm² to RCD, 10 mm² to Earth
Height x Width: 504x297mm
EAN: 5060943540679
Manufactured by CEENORM using BALS panel sockets
All back boxes are supplied undrilled for cable entry unless otherwise requested
Straight sockets fitted as standard
Angled sockets can be fitted on special request
Other circuit protection available on request
CEENORM reserve the right to change the enclosure size
