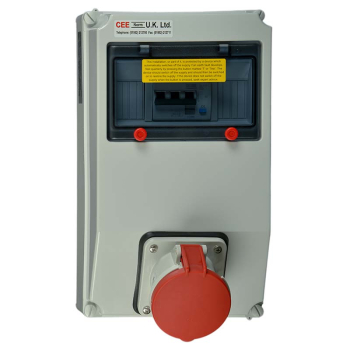

Surface Mounting Socket Outlet RCD Protected 63A 400V 5P IP44 A Type
Stock Code: 880148-A
EAN: 5060943542963
EAN: 5060943542963
| Amp Current | 63A |
|---|---|
| Voltage | 400V |
| Pins | 3P+N+E |
| IP Rating | IP44 |
| Connection Technology | Pre-Wired |
| H Position | 6H |
| Overall Dimensions | 369x222mm |
| Protective Devices | 63A 30MA 4P RCD Type A |
Surface Mounting Socket Outlet Protected
63A, 400V, 5P, IP44, 6H pre-wired to RCD
Socket protected by 63A 30MA 4P RCD Type A
With a maximum conductor size of 25,0 mm² to RCD, 10 mm² to Earth
Height x Width: 369x222mm
EAN: 5060943540624
Manufactured by CEENORM using BALS panel sockets
All back boxes are supplied undrilled for cable entry unless otherwise requested
Straight sockets fitted as standard
Angled sockets can be fitted on special request
Other circuit protection available on request
CEENORM reserve the right to change the enclosure size
