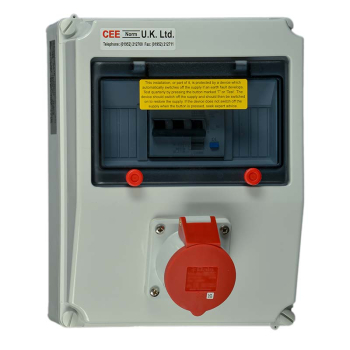

Surface Mounting Socket Outlet RCD Protected 16A 400V 5P IP44 A Type
Stock Code: 880140-A
EAN: 5060943543366
EAN: 5060943543366
| Amp Current | 16A |
|---|---|
| Voltage | 400V |
| Pins | 3P+N+E |
| IP Rating | IP44 |
| Connection Technology | Pre-Wired |
| H Position | 6H |
| Overall Dimensions | 284x222mm |
| Protective Devices | 25A 30MA 4P RCD Type A |
Surface Mounting Socket Outlet Protected
16A, 400V, 5P, IP44, 6H pre-wired to RCD
Socket protected by 25A 30MA 4P RCD Type A
With a maximum conductor size of 25,0 mm² to RCD, 10 mm² to Earth
Height x Width: 284x222mm
EAN: 5060943540501
Manufactured by CEENORM using BALS panel sockets
All back boxes are supplied undrilled for cable entry unless otherwise requested
Straight sockets fitted as standard
Angled sockets can be fitted on special request
Other circuit protection available on request
CEENORM reserve the right to change the enclosure size
