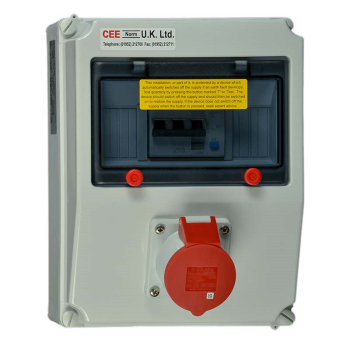

Surface Mounting Socket Outlet RCD Protected 32A 400V 4P IP44 A Type
Stock Code: 880133-A
EAN: 5060943542994
EAN: 5060943542994
| Amp Current | 32A |
|---|---|
| Voltage | 400V |
| Pins | 3P+E |
| IP Rating | IP44 |
| Connection Technology | Pre-Wired |
| H Position | 6H |
| Overall Dimensions | 284x222mm |
| Protective Devices | 40A 30MA 4P RCD Type A & 32A TP MCB Type C |
Surface Mounting Socket Outlet Protected
32A, 400V, 4P, IP44, 6H pre-wired to RCD
Socket protected by 40A 30MA 4P RCD Type A & 32A TP MCB Type C
With a maximum conductor size of 25,0 mm² to RCD, 10 mm² to Earth
Height x Width: 284x222mm
EAN: 5060943542994
Manufactured by CEENORM using BALS panel sockets
All back boxes are supplied undrilled for cable entry unless otherwise requested
Straight sockets fitted as standard
Angled sockets can be fitted on special request
Other circuit protection available on request
CEENORM reserve the right to change the enclosure size
