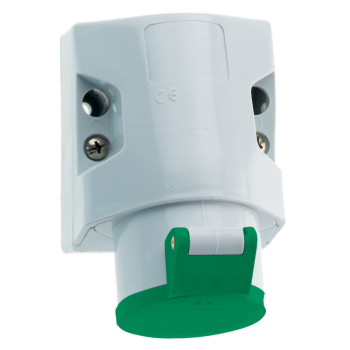

Low Voltage Surface Mounting Socket Outlet 16A <50V 2P IP44
Stock Code: 413
EAN: 4024941004138
EAN: 4024941004138
| Amp Current | 16A |
|---|---|
| Voltage | <50V |
| Pins | 2P |
| IP Rating | IP44 |
| Connection Technology | Screw Terminal |
| H Position | 2H |
| Overall Dimensions | 80x70mm |
Low Voltage Surface Mounting Socket
16A, <50v, 2p="" ip44="" 2h="" with="" screw="" terminals="" br="">
Enclosure made of Polyamide
The contact carrier is made of polyamide, the contacts are brass nickel plated
M25 Top Entry
The cable entry is one at top open
With a maximum conductor size of 10,0 mm²
Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem
EAN: 4024941004138
