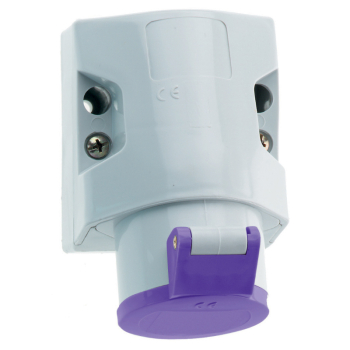

Low Voltage Surface Mounting Socket Outlet 16A 24V 2P IP44
Stock Code: 410
EAN: 4024941004107
EAN: 4024941004107
| Amp Current | 16A |
|---|---|
| Voltage | 24V |
| Pins | 2P |
| IP Rating | IP44 |
| Connection Technology | Screw Terminal |
| H Position | no minor keyway |
| Overall Dimensions | 80x70mm |
Low Voltage Surface Mounting Socket
16A, 24V, 2P, IP44, no minor keyway with screw terminals
Enclosure made of Polyamide
The contact carrier is made of polyamide, the contacts are brass nickel plated
M25 Top Entry
The cable entry is one at top open
With a maximum conductor size of 10,0 mm²
Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem
EAN: 4024941004107
