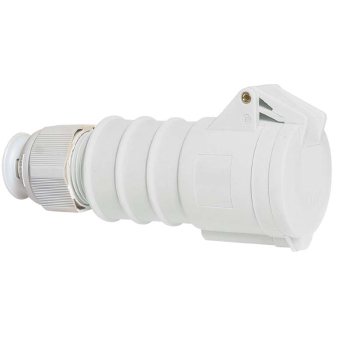

Direct Current Connector 32A >50-250V 3P IP44
EAN: 4024941316781
| Amp Current | 32A |
|---|---|
| Voltage | >50V-250V |
| Pins | 2P+E |
| IP Rating | IP44 |
| Connection Technology | Quick Connect / Screwless Terminal |
| H Position | 3H |
Direct Current Connector
32A, >50V-250V, 3P, IP44, 3H with "Quick Connect" screwless terminals
Cable gland
Enclosure made of Polyamide
The contact carrier is made of high temperature resistant material, the contacts are brass nickel plated
With a maximum conductor size of 6,0 mm²
Multi-Grip cable gland with gasket and integrated strain relief, For cable diameter from 11 up to max. 23,5 mm
Made with BALS “Multi-Grip” cable gland which features a rubber seal which is firmly molded on so that it facilitates connection. This means no additional seals and rings are required. The 18 flexible laminae adapt to the cable diameter. The Multi-Grip screw connection achieves a high tensile strength whilst simultaneously protecting the cable.
Connection Technology: Quick-Connect Screwless
- QUICK-CONNECT plugs have two sealing screws to secure the contact carrier to the housing
- Pressing the contact slide with your finger closes the terminal
- Lock engages automatically, and securely on closing
- Lock can be opened by turning clockwise with a screwdriver
- Reliable and permanent connection by means of spring-clamp technology
- The damage-free conductor clamping guarantees an optimum connection over the entire service life
- Rewiring without additional handling of the conductor
EAN: 4024941316781
