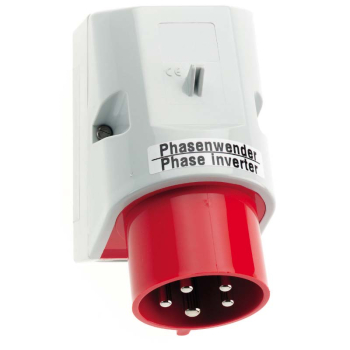

Phase Inverter Surface Mounting Appliance Inlet 32A 400V 5P IP44
EAN: 4024941242110
| Amp Current | 32A |
|---|---|
| Voltage | 400V |
| Pins | 3P+N+E |
| IP Rating | IP44 |
| Connection Technology | Screw Terminal |
| H Position | 6H |
| Overall Dimensions | 126x83mm |
Phase Inverter Surface Mounting Appliance Inlet
32A, 400V, 5P, IP44, 6H with screw terminals
Enclosure made of Polyamide
The contact carrier is made of high temperature resistant material, the contacts are brass nickel plated
The cable entry is one at top open and two at bottom closed
The item comes with 4 cut out fixing holes in the lower part of the housing
M25 Top Entry and 2 x M25 Bottom Entry
With a maximum conductor size of 6,0 mm²
Phase inverters offer an ingenious solution to change the direction of AC electric motor rotation, the change of rotary field is possible using a simple screwdriver.
Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem
EAN: 4024941242110
