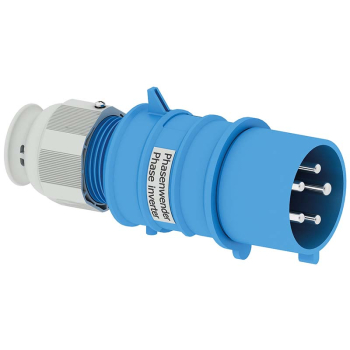

Phase Inverter Plug 32A 230V 5P IP44
EAN: 4024941022873
| Amp Current | 32A |
|---|---|
| Voltage | 230V |
| Pins | 3P+N+E |
| IP Rating | IP44 |
| Connection Technology | Screw Terminal |
| H Position | 9H |
| Overall Dimensions | 181x72mm |
Phase Inverter Plug
32A, 230V, 5P, IP44, 9H with screw terminals
Cable gland
Enclosure made of Polyamide
The contact carrier is made of high temperature resistant material, the contacts are brass nickel plated
With a maximum conductor size of 6,0 mm²
For cable diameter from 13 up to max. 27 mm. Multi-Grip cable gland with gasket, integrated cable clamp and additional water evacuation openings
Phase inverters offer an ingenious solution to change the direction of AC electric motor rotation, the change of rotary field is possible using a simple screwdriver.
Made with BALS “Multi-Grip” cable gland which features a rubber seal which is firmly molded on so that it facilitates connection. This means no additional seals and rings are required. The 18 flexible laminae adapt to the cable diameter. The Multi-Grip screw connection achieves a high tensile strength whilst simultaneously protecting the cable.
Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem
EAN: 4024941022873
